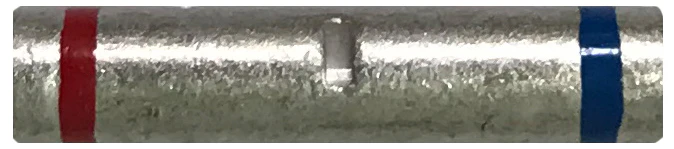

16-14 to 22-18 AWG Non-Insulated Step Down Butt Connector - 10 to 1000 Pack - Made in USA

16-14 to 22-18 AWG Non-Insulated Step Down Butt Connector - 10 to 1000 Pack - Made in USA

Non-Insulated Step Down Butt Connectors offer a reliable crimp connection for transitioning between different wire gauges in automotive, electrical, and fleet wiring systems. Made from high-conductivity pure copper (Alloy 110) and electro tin-plated for enhanced corrosion resistance, these connectors are engineered for maximum strength and conductivity. Made in USA.

Specifications & Features

  • Wire Range: 16-14 to 22-18 AWG
  • Material: Copper (Alloy 110), annealed
  • Plating: Electro tin-plated for corrosion protection
  • Insulation: Non-insulated
  • Terminal Type: Step down butt connector
  • Termination Method: Crimp
  • Voltage Rating: 600 Volts
  • Temperature Rating: 230°F
  • Certifications: cULus listed
  • Standards: MIL-T-10727C Type 1, ASTM B545 B (.0001–.00025" plating thickness)
  • Seamless barrel construction with "V" groove serrations for improved mechanical retention and tensile strength
  • Markings clearly labeled for wire size identification
Select Pack Size
From $3.49
16-14 to 22-18 AWG Non-Insulated Step Down Butt Connector - 10 to 1000 Pack - Made in USA—
$3.49

Product Information

Shipping & Returns

Description

Non-Insulated Step Down Butt Connectors offer a reliable crimp connection for transitioning between different wire gauges in automotive, electrical, and fleet wiring systems. Made from high-conductivity pure copper (Alloy 110) and electro tin-plated for enhanced corrosion resistance, these connectors are engineered for maximum strength and conductivity. Made in USA.

Specifications & Features

  • Wire Range: 16-14 to 22-18 AWG
  • Material: Copper (Alloy 110), annealed
  • Plating: Electro tin-plated for corrosion protection
  • Insulation: Non-insulated
  • Terminal Type: Step down butt connector
  • Termination Method: Crimp
  • Voltage Rating: 600 Volts
  • Temperature Rating: 230°F
  • Certifications: cULus listed
  • Standards: MIL-T-10727C Type 1, ASTM B545 B (.0001–.00025" plating thickness)
  • Seamless barrel construction with "V" groove serrations for improved mechanical retention and tensile strength
  • Markings clearly labeled for wire size identification
